R I O G R E E N

Product Details

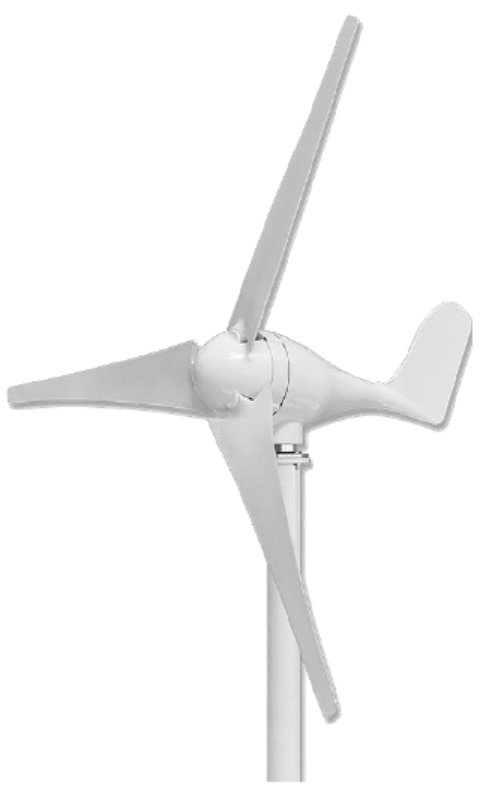

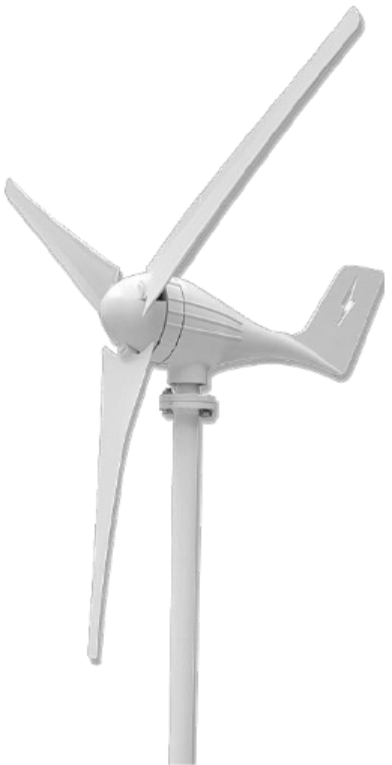

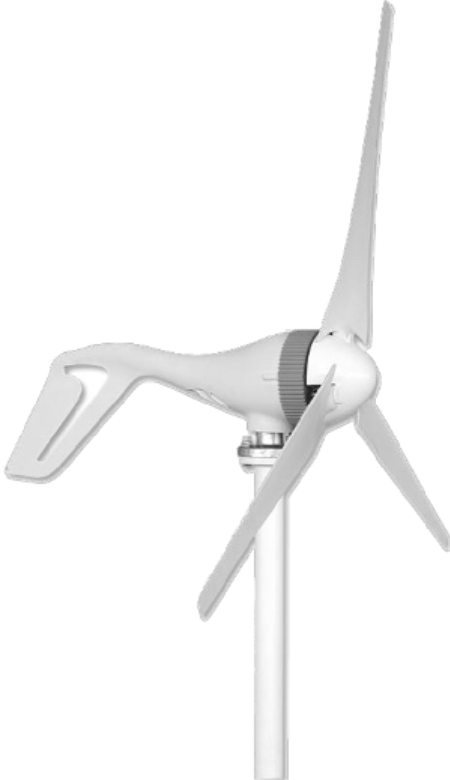

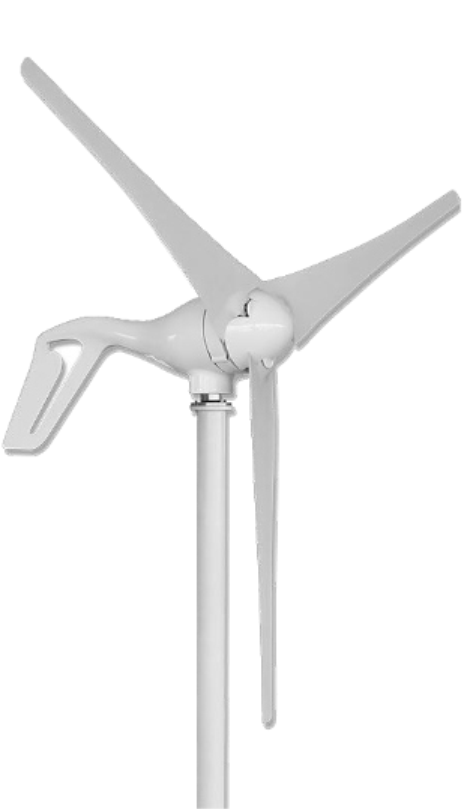

Horizontal Axis Wind Turbine

L Series


Low start-up wind speed, small size, beautiful appearance and low vibration during operation; Use the humanized flange installation design, which is convenient for installation and maintenance; The blades are made of nylon fiber, with low starting wind speed and high wind energy utilization coefficient; The generator adopts the magnet-bearing rotor alternator of Amway technology, equipped with a special rotor design, which effectively reduces the resistance torque of the generator, which is only 1/3 of the ordinary motor, and at the same time makes the wind wheel and generator more powerful. for good matching characteristics;

Adopt maximum power tracking intelligent microprocessor control to effectively adjust current and voltage;

MODEL RL-S-100W RL-S-200W RL-S-300W RL-S-400W RL-S-500W RL-S-600W RL-S-700W RL-S-800W
Rated power 100W 200W 300W 400W 500W 600W 700W 800W
Maximum power 110W 220W 330W 440W 550W 660W 770W 880W
Rated voltage 12/24V 12/24V 12/24/M/S 12/24/M/S 12/24/M/S 12/24/M/S 12/24/M/S 12/24/M/S
Start-up wind speed 3.0m/s 3.0m/s 3.0m/s 3.0m/s 3.0m/s 3.0m/s 3.0m/s 3.0m/s
Rated wind speed 14m/s 14m/s 14m/s 14m/s 14m/s 14m/s 14m/s 14m/s
Survival wind speed 40m/s 40m/s 40m/s 40m/s 40m/s 40m/s 40m/s 40m/s
Number of blades 3/5/6/8 pieces
Blade material nylon fiber
Body material aluminium alloy
Generator three phase AC permanent magnet
Control system generator / maglev generator
Yaw mode electromagnetic brake
Lubrication mode automatic windward angle
Tower form self lubrication
Working temperature guyed tower / independent tower
